WLAN集中式转发

WLAN知识点

一、核心拓扑

1
2
3
[DHCP服务器] → [交换机] ←→ [AC]
                   ↓
               [FIT AP] → 无线终端（手机/电脑）
  • AP需通过有线连接到网络，与AC建立CAPWAP隧道。

二、配置关键步骤

  1. AC基础配置

    • 配置管理IP（如Vlanif接口）、启用CAPWAP。
    1
    [AC] capwap source interface Vlanif 100  # 指定AC的CAPWAP源接口
    • 下发AP的DHCP中的option 43
    1
    2
    option 43 hex 030A31302E31302E31302E31
    option 43 sub-option 3 ascii 10.10.10.1

  2. AP上线

    • AP通过DHCP获取IP，通过DHCP Option43或静态配置发现AC。
    • AC上注册AP（手动添加AP的MAC或序列号）。
    1
    2
    3
    [AC] wlan
    [AC-wlan] ap auth-mode mac-auth  # 按MAC认证AP
    [AC-wlan] ap-id 1 ap-mac 00e0-fc12-3456  # 注册AP

  3. WLAN业务配置

    • 创建SSID（无线名称）、安全模板（如WPA2-PSK密码）。
    • 创建VAP模板（绑定SSID、安全模板、VLAN），下发到AP。
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    [AC-wlan] ssid-profile name office-ssid  # 创建SSID
    [AC-wlan-ssid-office-ssid] ssid Office  # 设置无线名称

    [AC-wlan] security-profile name office-sec  # 创建安全模板
    [AC-wlan-security-office-sec] security wpa2 psk pass-phrase 12345678 aes  # 配置密码

    [AC-wlan] vap-profile name office-vap  # 创建VAP模板
    [AC-wlan-vap-office-vap] ssid-profile office-ssid  # 绑定SSID
    [AC-wlan-vap-office-vap] security-profile office-sec  # 绑定安全模板
    [AC-wlan-vap-office-vap] vlan 10  # 绑定VLAN

    # 单个ap下发配置
    [AC-wlan] ap-id 1  # 进入AP视图
    [AC-wlan-ap-1] vap-profile office-vap wlan 1  # 给AP下发VAP

    # 多个ap下发配置
    [AC-wlan] ap-gruop name rjdl # 创建rjdl组
    [AC-wlan] ap-id 1  # 进入AP视图
    [AC-wlan-ap-1]ap-group rjdl #将AP1加入rjdl组
    [AC-wlan-ap-1]ap-name 801-ap ap名称

    [AC-wlan] ap-group name rjdl  # 进入组
    [AC-wlan-ap-group-rjdl] vap-profile office-vap wlan 1 radio all
    # 下发VAP模板（如office-vap），分配WLAN ID 1，所有射频（2.4G/5G）生效

三、CAPWAP隧道

  • AC与AP的通信通道，分控制隧道（UDP 5246，传配置）和数据隧道（UDP 5247，传用户流量）。
  • 需确保AC与AP网络连通，防火墙放通对应端口。

四、常用排错命令

  • 查看AP状态：display ap all（AP状态为“nor”表示正常）。
  • 查看CAPWAP隧道：display capwap ap all。
  • 查看SSID和VAP：display wlan ssid-profile、display wlan vap-profile。

案例

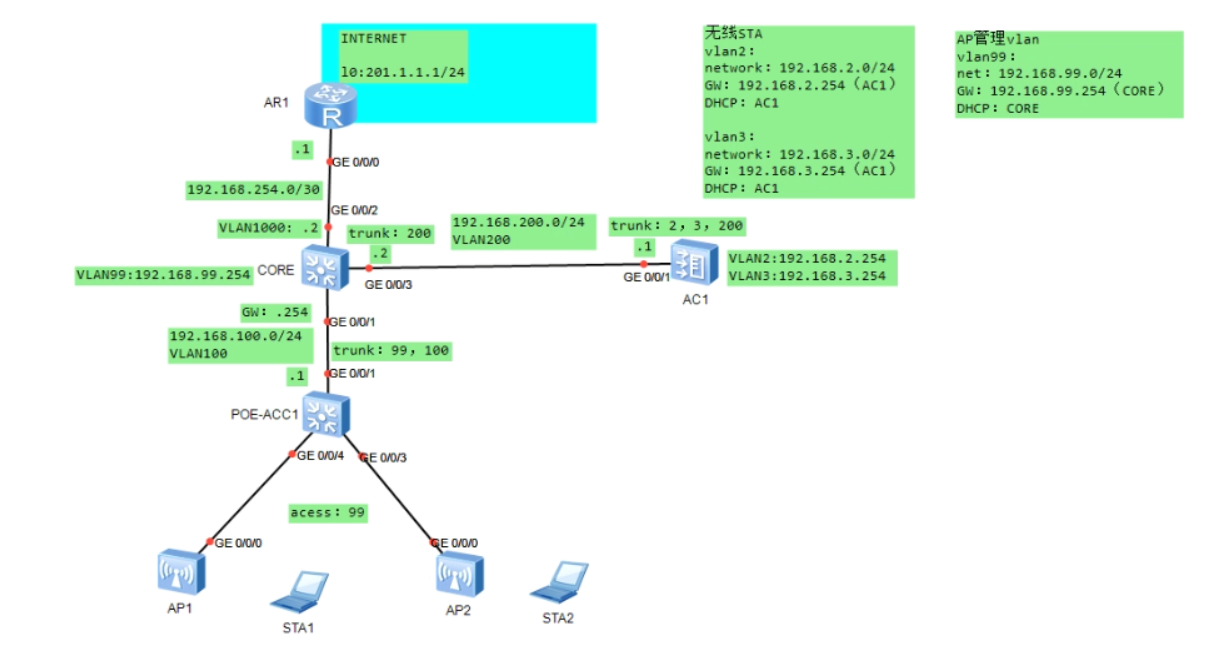

实验拓扑

1

基础配置

AR1

1
2
3
4
5
6
7
8
9
10
11
sysname AR1
interface GigabitEthernet0/0/0
 ip address 192.168.254.1 255.255.255.252
interface LoopBack0
 ip address 201.1.1.1 255.255.255.0
q
ip route-static 192.168.2.0 255.255.255.0 192.168.254.2
ip route-static 192.168.3.0 255.255.255.0 192.168.254.2
ip route-static 192.168.99.0 255.255.255.0 192.168.254.2
ip route-static 192.168.100.0 255.255.255.0 192.168.254.2
ip route-static 192.168.200.0 255.255.255.0 192.168.254.2

CORE

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
sysname CORE
vlan 99
 description ap-vlan
vlan 100
 description to-poe-acc1
vlan 200
 description to-ac1
vlan 1000
 description to-ar1

interface Vlanif99
 ip address 192.168.99.254 255.255.255.0
interface Vlanif100
 ip address 192.168.100.254 255.255.255.0
interface Vlanif200
 ip address 192.168.200.2 255.255.255.0
interface Vlanif1000
 ip address 192.168.254.2 255.255.255.252
q
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 99 to 100

interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 1000

interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 200
q
dhcp enable
interface Vlanif99
 dhcp select global

ip pool manage-ap
 gateway-list 192.168.99.254
 network 192.168.99.0 mask 255.255.255.0
 option 43 sub-option 3 ascii 192.168.200.1

q
ip route-static 0.0.0.0 0.0.0.0 192.168.254.1
ip route-static 192.168.2.0 255.255.255.0 192.168.200.1
ip route-static 192.168.3.0 255.255.255.0 192.168.200.1

AC1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
sysname AC1
vlan 2
 description sta-vlan2
vlan 3
 description sta-vlan3
vlan 200
 description to-core

interface Vlanif2
 ip address 192.168.2.254 255.255.255.0
 dhcp select global
interface Vlanif3
 ip address 192.168.3.254 255.255.255.0
 dhcp select global
interface Vlanif200
 ip address 192.168.200.1 255.255.255.0

 interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 2 to 3 200

dhcp enable
ip pool sta-vlan2
 gateway-list 192.168.2.254
 network 192.168.2.0 mask 255.255.255.0
ip pool sta-vlan3
 gateway-list 192.168.3.254
 network 192.168.3.0 mask 255.255.255.0

ip route-static 0.0.0.0 0.0.0.0 192.168.200.2

POC-ACC1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
sysname POE-ACC1
vlan batch 99 to 100
interface Vlanif100
 ip address 192.168.100.1 255.255.255.0

interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 99 to 100

port-group 1
group-member GigabitEthernet 0/0/3 to GigabitEthernet 0/0/4
port link-type access
port default vlan 99

ip route-static 0.0.0.0 0.0.0.0 192.168.100.254

核心配置

AC1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
# CAPWAP配置：指定源接口
capwap source interface Vlanif200

# ap上线
wlan
 ap-group name rjdl #创建一个rjdl组
 ap auth-mode mac-auth  # AP按MAC认证
 ap-id 1 ap-mac 00e0-fc2f-7a60  # 注册AP1
 ap-group rjdl #将AP1加入rjdl组
 ap-id 2 ap-mac 00e0-fc21-7200  # 注册AP2
 ap-group rjdl
q
 ssid-profile name guest  # 创建ssid模板
  ssid guest # 设置wifi名称
q
 ssid-profile name net24
  ssid net24
q
 security-profile name wpa2  # 创建安全模板
  security wpa2 psk pass-phrase 12345678 aes # 设置密码
q
 vap-profile name guest # 创建VAP模板
  forward-mode tunnel #数据转发模式为 “隧道模式”
  service-vlan vlan-id 3 #绑定vlan
  ssid-profile guest  # 绑定SSID
 vap-profile name net24
  forward-mode tunnel
  service-vlan vlan-id 2
  ssid-profile net24
  security-profile wpa2  #绑定安全模板
q
  ap-group name rjdl  # 将VAP下发到组内AP
   vap-profile guest wlan 1 radio all
   vap-profile net24 wlan 2 radio all

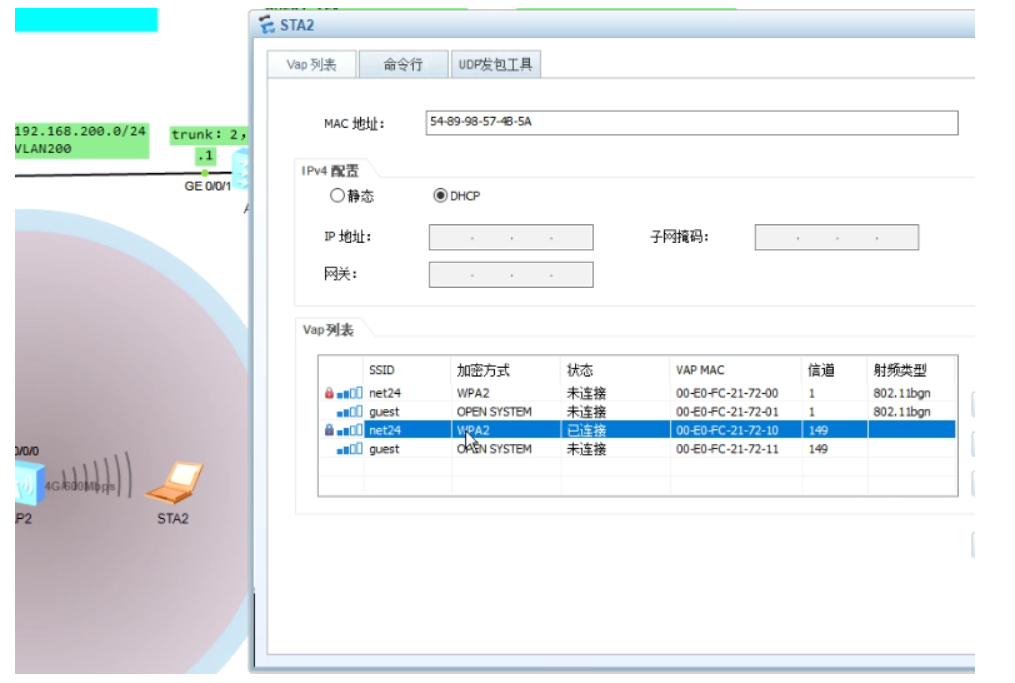

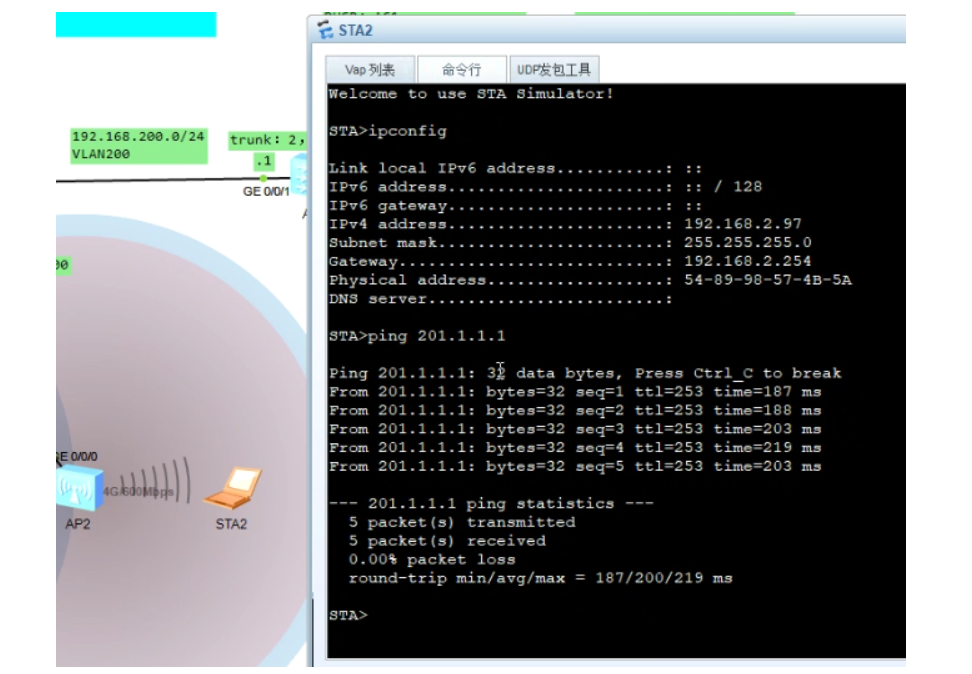

测试

2

3

华为ensp
#ensp #WLAN
